Model: Model 60, Model 50

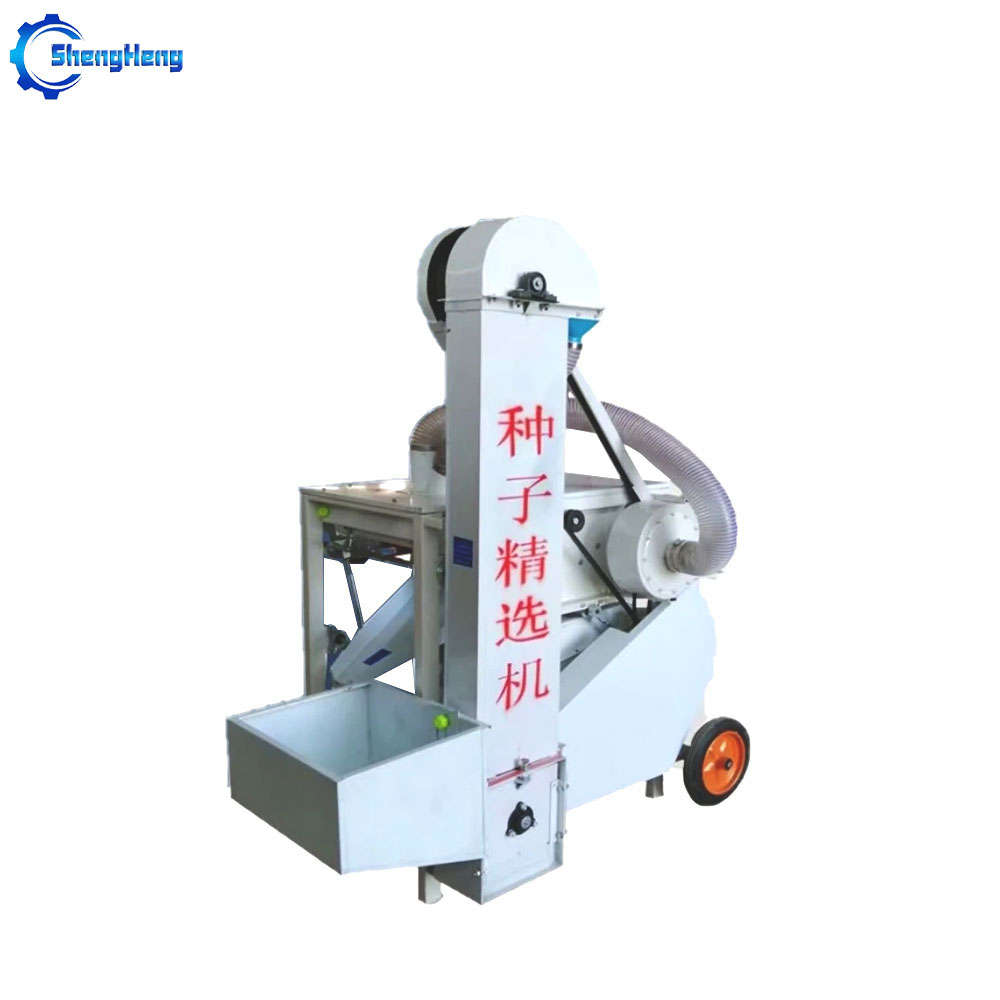

Model 50 Seed Sorting Machine:

• Model Name: 5X-1.5

• Structure Type: Air Screen

• Rated Voltage: 220V/380V

• Motor Power: 3.0kW

• Motor Speed: 2880r/min

• Internal Structure: Vibrating Screen + Air Classifier + Gravity Screen

• Production Efficiency: 1.5t/h

• Equipment Dimensions: 1550mm x 1050mm x 1850mm

• Equipment Weight: 200kg

Model 60 Seed Sorting Machine:

• Model Name: 5X-3

• Structure Type: Air Screen

• Rated Voltage: 220V/380V

• Motor Power: 3.0/3.5kW

• Motor Speed: 2880/1400r/min

• Internal Structure: Vibrating Screen + Air Classifier + Gravity Screen

• Production Efficiency: 3.0t/h

• Equipment Dimensions: 2330mm x 1030mm x 1680mm

• Equipment Weight: 500kg

Working Principle of Seed Sorting Machine

After the raw materials are fed in, the bucket elevator first passes through a negative pressure dust extraction fan to remove light impurities such as dust and bran. These impurities are then discharged through the air duct. Next, the material flows into a vibrating screen, where a screen with a customized aperture removes impurities that are too large or too small. Then, the material enters a positive pressure density screen to remove lighter impurities such as debris, buds, insect-damaged grains, and moldy grains.

Application areas of seed sorting machines:

1. Seed companies

2. Farms/planting bases

3. Grain processing enterprises

4. Agricultural input dealers

5. Research institutions

Applicable to

Corn, wheat, soybeans, sunflower seeds, rice, paddy rice, vegetable seeds, etc.

Differences between the 50 and 60 models of the wheat harvester:

1. Higher hourly output: The 50 model has an hourly output of 750-1000 kg (wheat), while the 60 model has an hourly output of 1500-2000 kg (wheat).

2. The 60 model can be equipped with electronic induction automatic feed dispensing and can be adjusted between manual and automatic modes; the 50 model only has a manual mode.

3. The 60 model has an independent, movable feed bin; the 50 model's feed bin is fixed.

4. The 60 model has a cyclone dust collector.

5. The 60 model's feed bin has an independent motor; the 60 model has two motors; the 50 model has one motor.
